Deck Plan #1R7112

$19.99
I agree with the website Terms and Conditions (REQUIRED).

This deck plan is for a large, mid-height single level deck with a pergola.

Deck Plan Includes
  • Deck layout diagram
  • Sub-structure diagram, with footing positions
  • Foundation diagram, with footing positions
  • Materials list, categorized by deck section
  • Materials list summary

All diagrams include detailed dimensions.
For more information, see Deck Plan Contents.

Area
302 ft²
Width
17 ft
Depth
20 ft
Height
2 ft
Deck Size
Large
Deck Height
Mid
Deck Levels
1 level

Width x Depth is not equal to Area on most plans. See Deck Plan Details for more information.

Deck Features:
Shade Structures
Pergola

This deck plan is for a large, mid-height single level deck with a pergola.

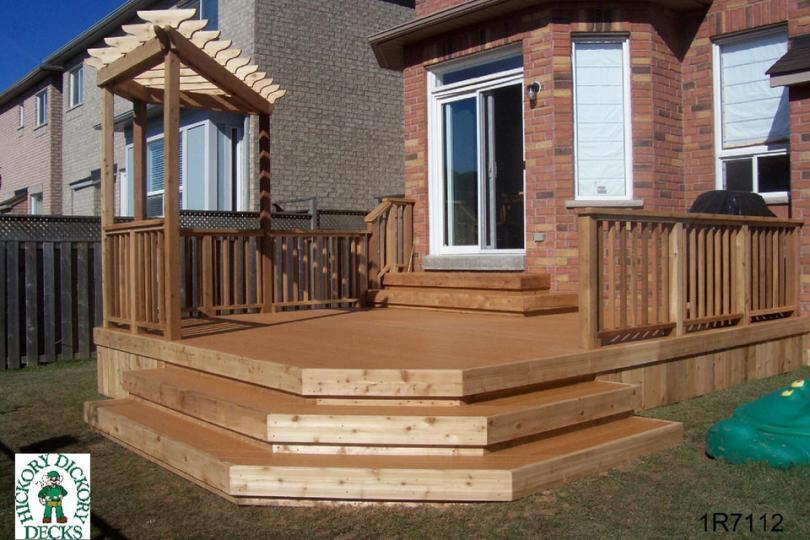

The completed deck in the project photo has been upgraded with composite deck boards.

Deck Plan Includes
  • Deck layout diagram
  • Sub-structure diagram, with footing positions
  • Foundation diagram, with footing positions
  • Materials list, categorized by deck section
  • Materials list summary

All diagrams include detailed dimensions.
For more information, see Deck Plan Contents.

Shade Structures
Pergola
Area
302 ft²
Width
17 ft
Depth
20 ft
Height
2 ft
Deck Size
Large
Deck Height
Mid
Deck Levels
1 level

Width x Depth is not equal to Area on most plans. See Deck Plan Details for more information.
